PLEASE NOTE THAT THESE CARDS ARE DESIGNED FOR GAMING PURPOSES AND MAY BE UNSUITABLE FOR MINING OR BLOCKCHAIN PURPOSES.
THESE CARDS COULD CONTAIN TECHNOLOGY TO RESTRICT PERFORMANCE IN CERTAIN SITUATIONS.
WARRANTIES FOR CARDS USED FOR THESE PURPOSES CAN BE INVALIDATED BY THE MANUFACTURER IN THE EVENT OF A FAILURE – PLEASE CHECK WITH THE MANUFACTURER DIRECTLY FOR FURTHER DETAILS.
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores

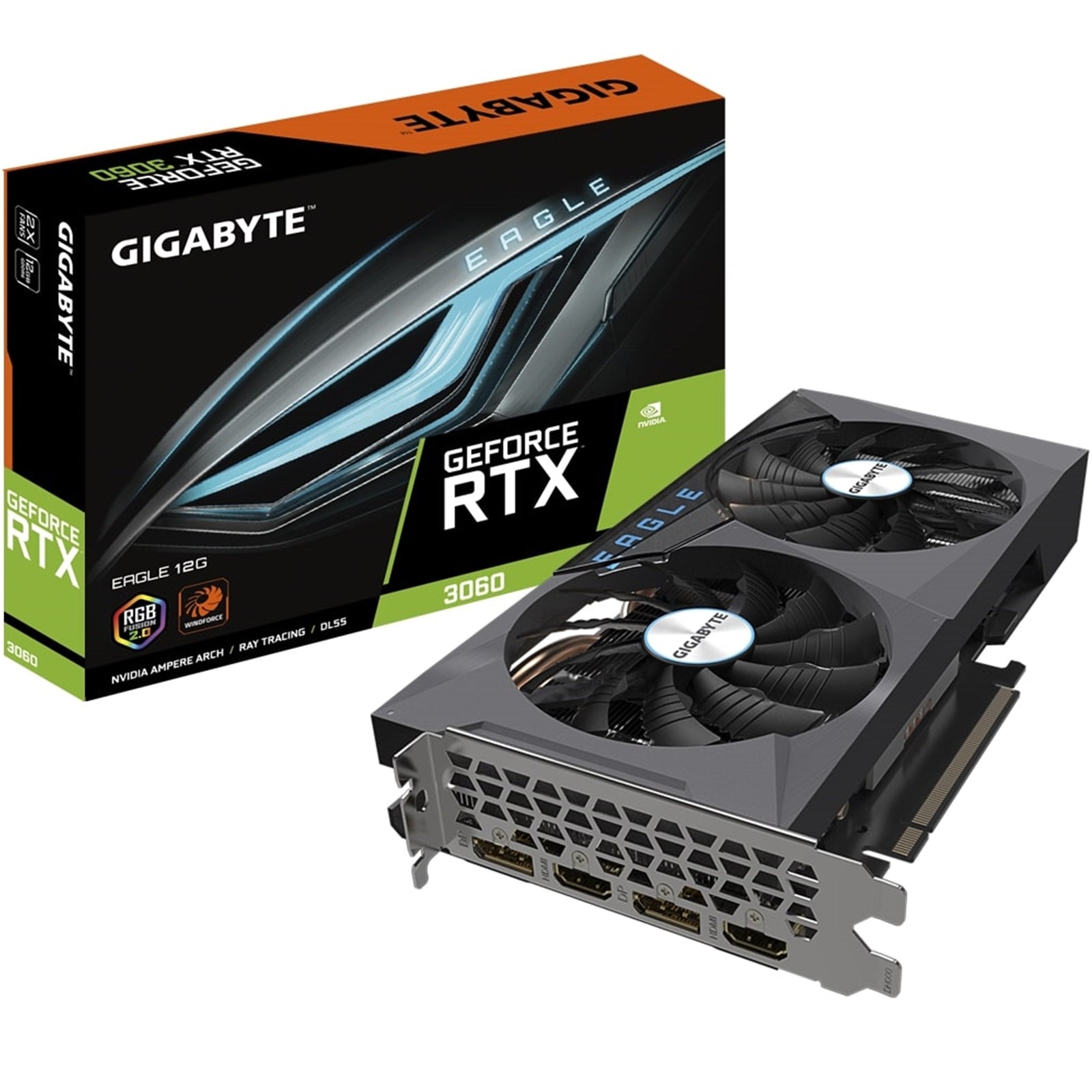

Powered by GeForce RTX™ 3060
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
100mm unique blade fans
RGB Fusion 2.0
Protection back plate
Limited Hash Rate version
Core Clock
1777 MHz
WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features 2X100mm unique blade fans, alternate spinning, 4 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specification
Graphics Processing
GeForce RTX™ 3060
Core Clock
1777 MHz
CUDA® Cores
3584
Memory Clock
15000 MHz
Memory Size
12 GB
Memory Type
GDDR6
Memory Bus
192 bit
Memory Bandwidth (GB/sec)
360 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680×4320
Multi-view
4
Card size
L=242 W=124 H=41 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
550W
Power Connectors
8 pin*1
Output
DisplayPort 1.4a *2
HDMI 2.1 *2
SLI Support
N/A
Accessories
Quick guide
