PLEASE NOTE THAT THESE CARDS ARE DESIGNED FOR GAMING PURPOSES AND MAY BE UNSUITABLE FOR MINING OR BLOCKCHAIN PURPOSES.
THESE CARDS COULD CONTAIN TECHNOLOGY TO RESTRICT PERFORMANCE IN CERTAIN SITUATIONS.
WARRANTIES FOR CARDS USED FOR THESE PURPOSES CAN BE INVALIDATED BY THE MANUFACTURER IN THE EVENT OF A FAILURE – PLEASE CHECK WITH THE MANUFACTURER DIRECTLY FOR FURTHER DETAILS.
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores

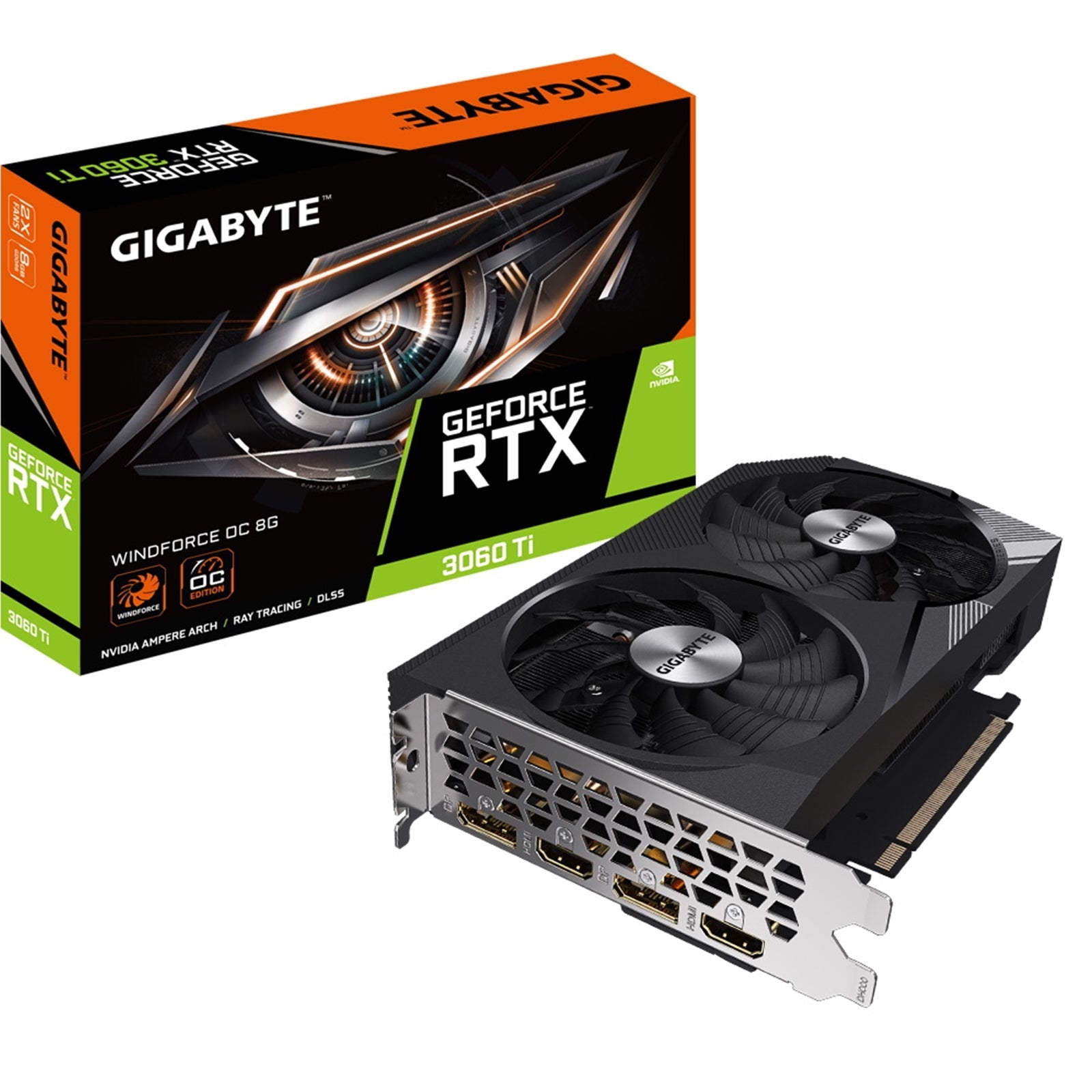

Powered by GeForce RTX 3060 Ti
Integrated with 8GB GDDR6 256-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
Screen cooling
200 mm compact card size
LHR (Lite Hash Rate) version
Core Clock
1680 MHz (Reference Card: 1665 MHz)
WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
TINY SIZE WITH MIGHTY PERFORMANCE
For gamers who prefer a small build with powerful performance, GIGABYTE delivers a compact graphics card with less than 200mm in length. The card provides mighty performance and is easy to install in any small chassis as well.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY & OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specification
Graphics Processing
GeForce RTX 3060 Ti
Core Clock
1680 MHz (Reference Card: 1665 MHz)
CUDA Cores
4864
Memory Clock
14000 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
448 GB/s
Card Bus
PCI-E 4.0 x 16
Digital Max Resolution
7680 x 4320
Multi-view
4
Card Size
L=198 W=121 H=39mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
600W
Power Connectors
8 pin x 1
Output
DisplayPort 1.4a x 2
HDMI 2.1 x 2
SLI Support
N/A
Accessories
Quick Guide
