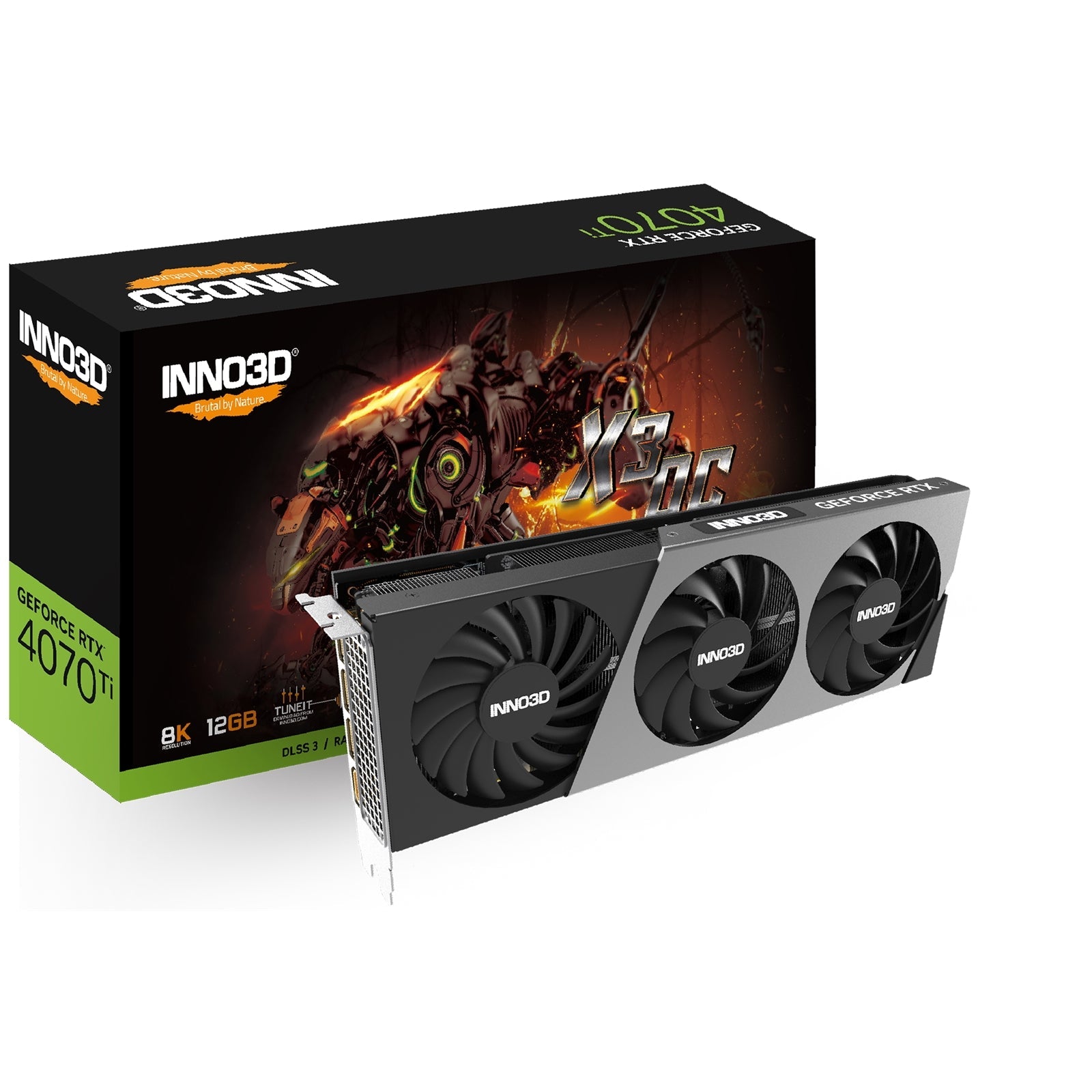

GeForce RTX 4070 Ti X3 OC, Dual Slot DLSS3, Faster than Fast, the Ultimate Platform for Gamers and Creators, powered by GeForce RTX 40 Series and DLSS 3
Specifications
GPU Engine Specs
CUDA Cores
7680
Boost Clock (MHz)
2640
Base Clock (MHz)
2310
Thermal and Power Spec
Minimum System Power Requirement (W)
700
Supplementary Power Connectors
2x PCIe 8-pin cables (adapter in box) OR 285 W or greater PCIe Gen 5 cable
Memory Specs
Memory Clock
21Gbps
Standard Memory Config
12GB
Memory Interface
GDDR6X
Memory Interface Width
192-bit
Memory Bandwith (GB/sec)
504
Feature Support
Real-Time Ray Tracing
Yes
Ray Tracing Cores
3rd Generation
Tensor Cores
4th Generation
NVIDIA Architecture
Ada Lovelace
Microsoft DirectX
12 Ultimate
NVIDIA DLSS
Yes
PCI Express Gen 4
Yes
NVIDIA GeForce Experience
Yes
NVIDIA Ansel
Yes
NVIDIA FreeStyle
Yes
Bus Support
PCI-E 4.0 X16
NVIDIA ShadowPlay
Yes
NVIDIA Highlights
Yes
OS Certification
Windows 11 / 10, Linux, FreeBSDx86
NVIDIA G-SYNC™-Ready
Yes
Lighting module
LED logo
Game Ready Drivers
Yes
NVIDIA Studio Drivers
Yes
NVIDIA GPU Boost™
Yes
Vulkan API
Yes
OpenGL
4.6
HDMI 2.1
Yes
DisplayPort 1.4a
Yes
NVIDIA Encoder
2x 8th Generation
NVIDIA Decoder
5th Generation
Accessories
Installation Guide
Power Guide
Graphics Card Dimensions
Length
297mm
Height
118mm
Width
42mm
Display Support
Multi Monitor
Yes
Maxmium Digital Resolution
7680 x 4320
HDCP
2.3
Standard Display Connectors
HDMI 2.1, 3x DisplayPort 1.4a
